Zinc Plated Die Pressed Caster With Grey PU Wheel
 |
 |
 |
 |
 |
 |
 |
 |
 |
|

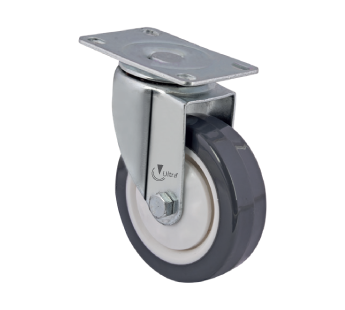

| Model No | Dia | Width | Plate | Bolt Hole | Capsule | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Hole Size | Height | (KG) | (KG) | Bearing | |||
| ZPD/75X32/PT/GPU | 75 | 32 | 92 x 62 | 78 x 45 | 8 | 105 | 50 | 60 | Single |
| ZPD/100X32/PT/GPU | 100 | 32 | 92 x 62 | 78 x 45 | 8 | 130 | 70 | 90 | Single |
| ZPD/125X32/PT/GPU | 125 | 32 | 92 x 62 | 78 x 45 | 8 | 155 | 100 | 130 | Single |
|
|
|
|
|
|
|
|
|

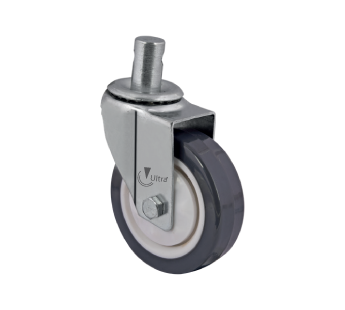

| Model No | Dia | Width | Pin Dia | Pin | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Height | Height | (KG) | (KG) | Bearing | |||
| ZPD/75X32/PI/ GPU | 75 | 32 | 21 | 38 | 105 | 50 | 60 | Single |
| ZPD/100X32/PI/GPU | 100 | 32 | 21 | 38 | 130 | 70 | 90 | Single |
| ZPD/125X32/PI/GPU | 125 | 32 | 21 | 38 | 155 | 100 | 130 | Single |
|
|
|
|
|
|
|
|
|

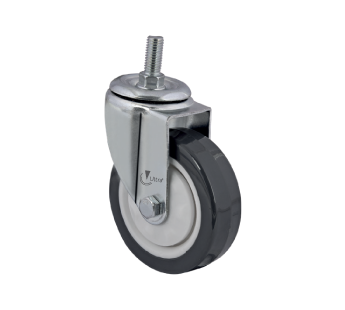

| Model No | Dia | Width | Stud Dia | Stud | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Height | Height | (KG) | (KG) | Bearing | |||
| ZPD/75X32/M12/GPU | 75 | 32 | M12 | 25 | 105 | 50 | 60 | Single |
| ZPD/100X32/M12/GPU | 100 | 32 | M12 | 25 | 130 | 70 | 90 | Single |
| ZPD/125X32/M12/GPU | 125 | 32 | M12 | 25 | 155 | 100 | 130 | Single |
