Stainless Steel Die Pressed Caster With UHMW Wheel Block
 |
 |
 |
 |
 |
 |
 |
 |
 |
|

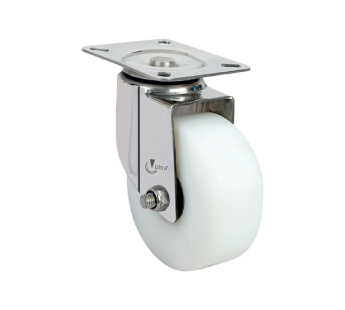

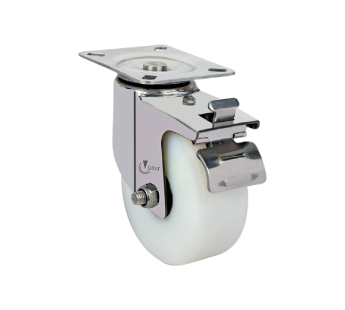

| Model No | Dia | Width | Plate | Bolt Hole | Capsule | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Hole Size | Height | (KG) | (KG) | Bearing | |||
| SSD/100x50/PT/UHMW | 100 | 50 | 94 X 94 | 70 X 70 | 9 | 130 | 100 | 120 | Double |
| SSD/125x50/PT/UHMW | 125 | 50 | 120 x 94 | 92 x 70 | 9 | 155 | 125 | 150 | Double |
| SSD/150x50/PT/UHMW | 150 | 50 | 120 x 94 | 92 x 70 | 9 | 185 | 140 | 180 | Double |
|
|
|
|
|
|
|
|
|

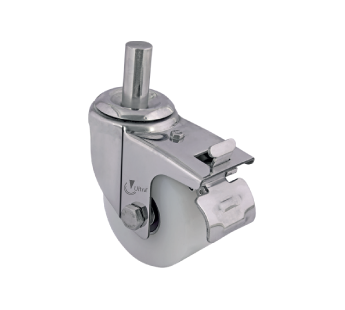

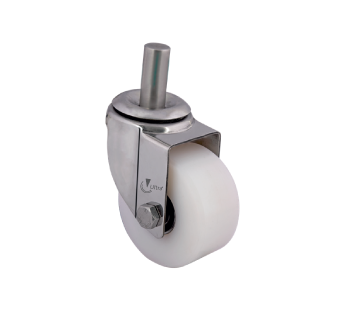

| Model No | Dia | Width | Pin Dia | Pin | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Height | (KG) | (KG) | Bearing | |||
| SSD/100x50/PI/UHMW | 100 | 50 | 21 | 45 | 130 | 100 | 120 | Double |
| SSD/125x50/PI/UHMW | 125 | 50 | 21 | 45 | 155 | 125 | 150 | Double |
| SSD/150x50/PI/UHMW | 150 | 50 | 21 | 45 | 185 | 140 | 180 | Double |
|
|
|
|
|
|
|
|
|

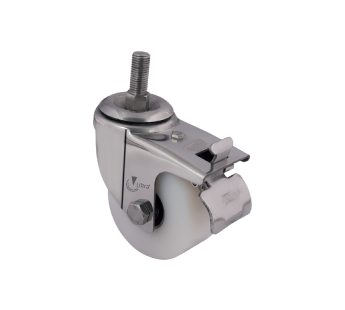

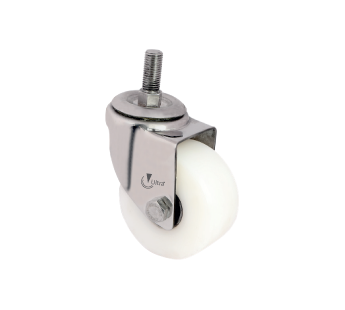

| Model No | Dia | Width | Stud Dai | Stud | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Height | Height | (KG) | (KG) | Bearing | |||
| SSD/100x50/M16/UHMW | 100 | 50 | M16 | 50 | 130 | 100 | 120 | Double |
| SSD/125x50/M16/UHMW | 125 | 50 | M16 | 50 | 155 | 125 | 150 | Double |
| SSD/150x50/M16/UHMW | 150 | 50 | M16 | 50 | 185 | 140 | 180 | Double |
