Zinc Plated Die Pressed Caster With Blue Rubber Wheel

Home
Bridge
Bridge
Bridge

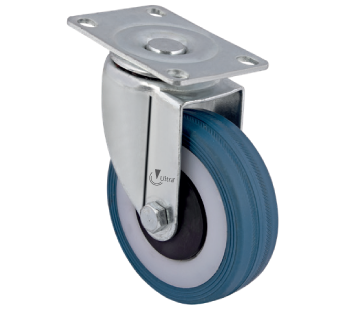

Model No Dia Width Plate Bolt Hole Capsule Total Dynamic Static Wheel
Size Spacing Hole Size Height (KG) (KG) Bearing
ZPD/75X32/PT/BR 75 32 92 x 62 78 x 45 8.5 105 50 60 Double
ZPD/100X32/PT/BR 100 32 92 x 62 78 x 45 8.5 130 70 90 Double
ZPD/125X32/PT/BR 125 32 92 x 62 78 x 45 8.5 155 80 100 Double
Bridge
Bridge

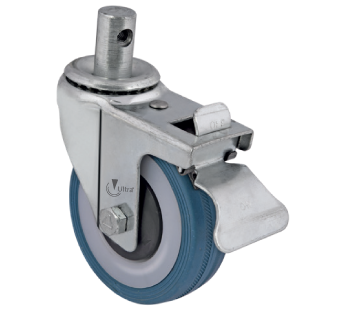

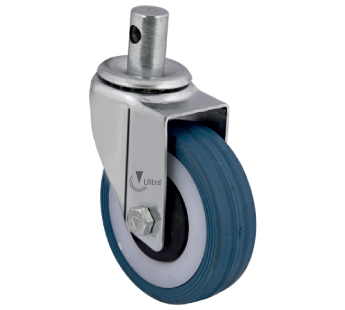

Model No Dia Width Pin Dia Pin Total Dynamic Static Wheel
Size Height Height (KG) (KG) Bearing
ZPD/75X32/PI/BR 75 32 21 38 105 50 60 Double
ZPD/100X32/PI/BR 100 32 21 38 130 70 90 Double
ZPD/125X32/PI/BR 125 32 21 38 155 80 100 Double
Bridge
Bridge

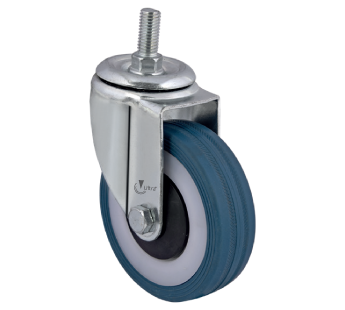

Model No Dia Width Stud Dia Stud Total Dynamic Static Wheel
Size Height Height (KG) (KG) Bearing
ZPD/75X32/M12/BR 75 32 M12 25 105 50 60 Double
ZPD/100X32/M12/BR 100 32 M12 25 130 70 90 Double
ZPD/100X32/M12/BR 125 32 M12 25 155 80 100 Double
