Stainless Steel Die Pressed Caster With Marron Fiber Wheels
 |
 |
 |
 |
 |
 |
 |
 |
 |
|

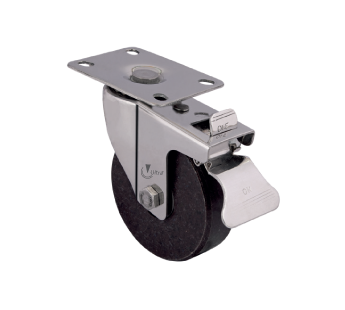

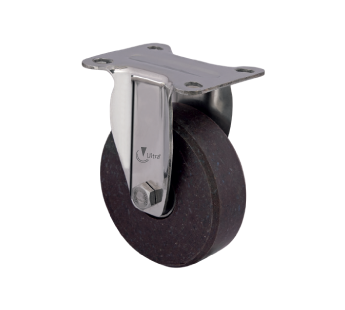

| Model No | Dia | Width | Plate | Bolt Hole | Capsule | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Hole Size | Height | (KG) | (KG) | Bearing | |||
| SSD/75x32/PT/MF | 75 | 32 | 95 X 70 | 74 X 46 | 9 | 105 | 50 | 60 | Double |
| SSD/100x32/PT/MF | 100 | 32 | 95 X 70 | 74 X 46 | 9 | 125 | 70 | 90 | Double |
| SSD/125x32/PT/MF | 125 | 32 | 95 X 70 | 74 X 46 | 9 | 155 | 100 | 1300 | Double |
|
|
|
|
|
|
|
|
|

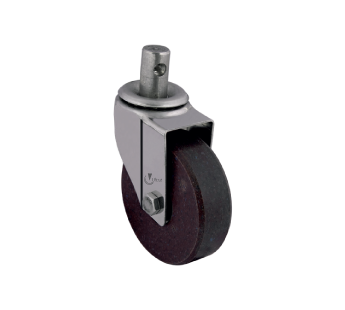

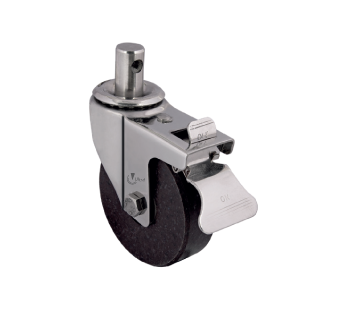

| Model No | Dia | Width | Pin Dia | Pin | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Height | Height | (KG) | (KG) | Bearing | |||
| SSD/75x32/PI/MF | 75 | 32 | 21 | 38 | 105 | 50 | 60 | Single |
| SSD/100x32/PI/MF | 100 | 32 | 21 | 38 | 125 | 70 | 90 | Single |
| SSD/125x32/PI/MF | 125 | 32 | 21 | 38 | 155 | 100 | 130 | Single |
|
|
|
|
|
|
|
|
|

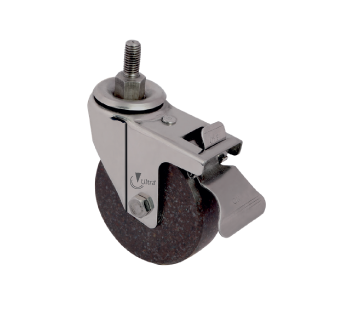

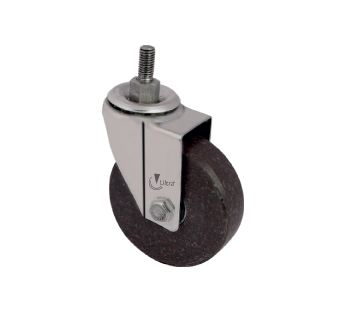

| Model No | Dia | Width | Stud Dai | Stud | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Height | Height | (KG) | (KG) | Bearing | |||
| SSD/75x32/M12/MF | 75 | 32 | M12 | 25 | 105 | 50 | 60 | Double |
| SSD/100x32/M12/MF | 100 | 32 | M12 | 25 | 125 | 70 | 90 | Double |
| SSD/125x32/M12/MF | 125 | 32 | M12 | 25 | 155 | 100 | 130 | Double |
